On this website you can get information on the
Hier finden Sie Informationen zur Outdoorbox

Outdoor Box for BS5 / 4 (which can also be used for AP26xx and AP36xx series)
Outdoor Box für BS5 /4 (kann auch für die WLAN Access Points AP26xx und AP36xx Serie genutzt werden)

and accessories for this product
und Zubehör


         Box_w_Sunshield            Inner_box_on_plate

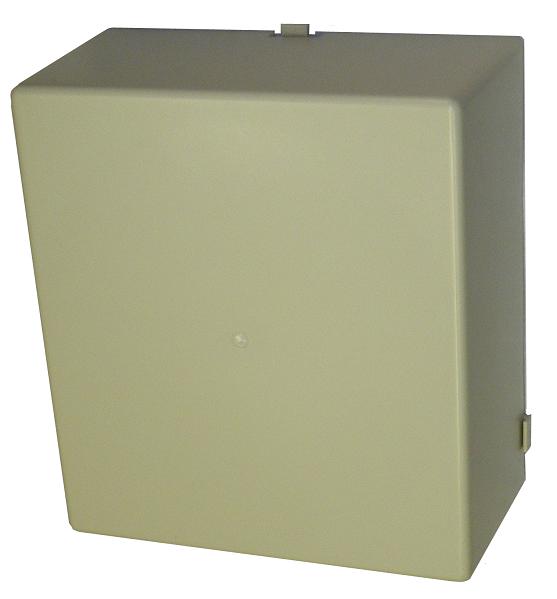

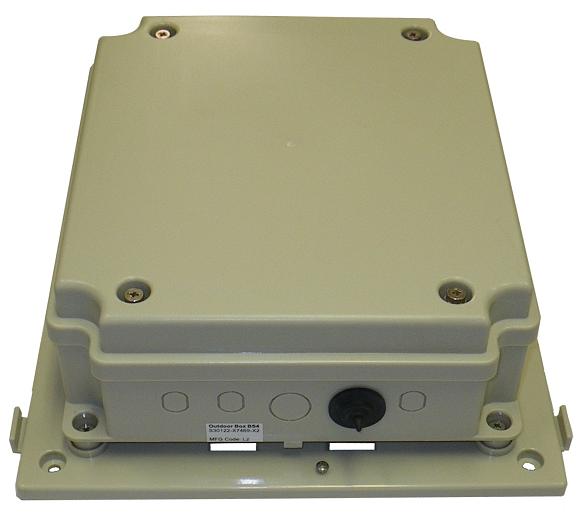

                Above: The sun shield which covers the inner box                       Above: The inner box mounted to the back plate
                Oben: Der Sonnenschutz der Inner Box                                           Oben: Die Inner Box auf der Montageplatte



              ODBXinnerbox               backplate

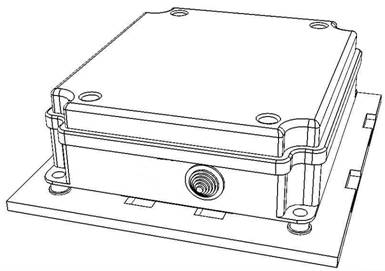

                  Above: The inner box mounted to the back plate                                   Above: The back plate
                  Oben: Die Inner Box auf der Montageplatte                                              Oben: Die Montageplatte




                                                                   Below: The back plate mounted to a pole
                                                                  Unten: Montageplatte am Mast montiert

                                                            polemount





                                                  pigtail

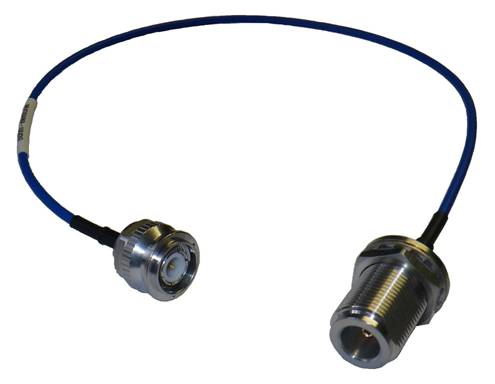

                                          Above: Pigtail for the BS5 / 4 (DECT) used in the Outdoor Box with 2 external antennas

                                          Oben: Anschlußkabel für 2 Außenantennen an BS5 / 4 (DECT)

Specification / Spezifikation:

Connector at the  BS5 / 4 end / Stecker auf BS5 / 4-Seite:         TNC male / TNC männlich  50 Ohm(s)
Connector mounted to Outdoor Box / Buchse im Gehäuse:        N type female / Typ N weiblich 50 Ohm(s)
                                                                                                              waterproof IP65 / Schutzart IP65
Length/ Länge:                                                                                   fits BS5 / 4 into Outdoor Box / Länge abgestimmt auf Outdoor Box
Part number/ Artikelnummer:                                                            426 00264 6024 0 – 0010 (= Order Code / Bestellnummer)
                                                                                                              2 pcs needed for Outdoor Box / 2 Stück werden für die Outdoor
                                                                                                               Box benötigt




Heater for the Outdoor Box
Heizung für die Outdoorbox

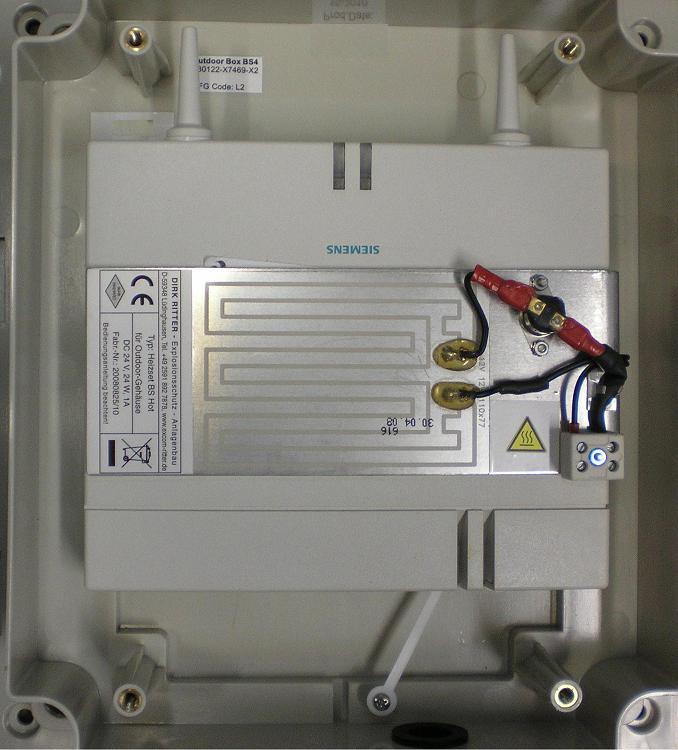

                                                                  Above: A BS5 / 4 with a heater in the inner box
                                                 Oben: Eine BS5 / 4 mit aufmontierter Heizung in der "Inner Box"



                                                        The supplier of the heater is:             www.excom-ritter.de
                                                         Der Lieferant der Heizung ist:            www.excom-ritter.de



                                                                    TNCcable

             Above:
             RF cable assembly extension TNC-male – TNC-female for BS5 / 4 – any custom made cable is available
             Oben:
             Verlängerungsleitung für BS5 / 4 Antennen TNC  männl auf TNC weibl – viele weitere Zubhörteile lieferbar
